Sapphire crystal is a material of a unique combination of physical, chemical and optical properties, which make it resistant to high temperature, thermal shock, water and sand erosion, and scratching. Sapphire wafers is widely used in semiconductor (MOCVD epitaxial GaN substrate),lasers, infrared, electronics, measuring instruments, military, aerospace and others high-tech industry.
PRODUCT PROFILE | ||||
Crystal Materials | 99,996%, High Purity, Monocrystalline Al2O3 | |||
Grade | Prime | |||
Orientation | C-plane(0001) off M-plane(1-100) 0.2° ± 0.1° | |||
Diameter | 50.8 ± 0.1 mm | 76.2 ± 0.2 mm | 100.0 ± 0.3 mm | 150.0 ± 0.3 mm |
Thickness | 430 μm ± 15 μm | 500 μm ± 20 μm | 650 μm ± 20 μm | 1000 μm ± 20 μm |
Primary flat orientation | A-plane (1 1 -2 0) ± 0.2° | |||
Primary flat length | 16.0 ± 1.0 mm | 22.0 ± 1.0 mm | 31.0 ± 1.0 mm | 50.0 ± 1.0 mm |
Front Surface | Epi-polished, Ra < 0.3 nm (by AFM) | |||
Back Surface | Fine-ground, Ra =0.8 um - 1.2 um | Epi-polished, Ra < 0.3 nm (by AFM) | ||
TTV | ≤ 5 μm | ≤ 10 μm | ≤ 10 μm | ≤ 15 μm |
LTV | ≤ 1.5 μm | ≤ 5 μm | ≤ 5 μm | ≤ 10 μm |
BOW | - 10 ~ 0 μm | - 15 ~ 0 μm | - 20 ~ 0 μm | - 25 ~ 0 μm |
Warp | ≤ 10 μm | ≤ 15 μm | ≤ 20 μm | ≤ 25 μm |

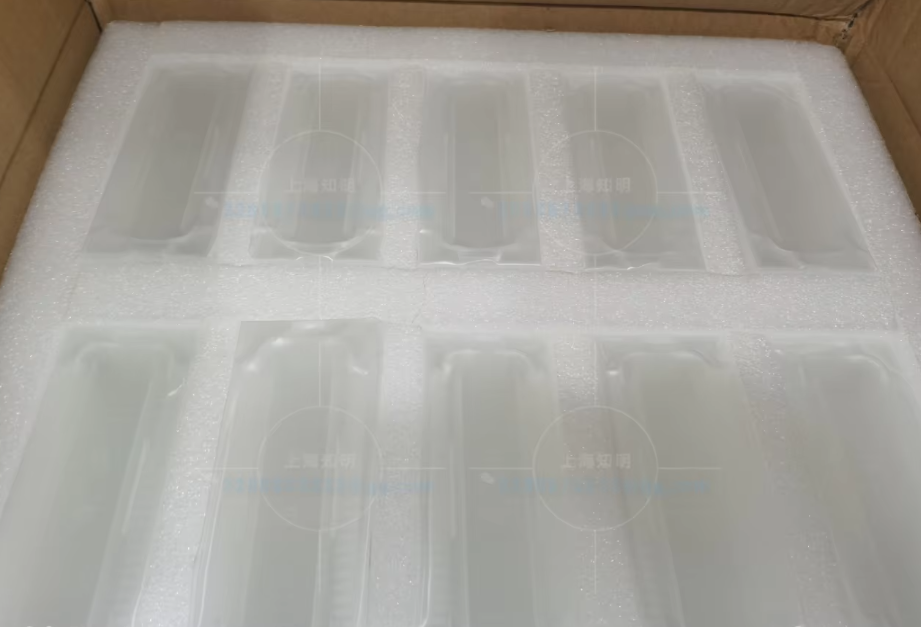

Cleaning/ packaging | Class 100 clean room cleaning and vacuum packaging, 25 pieces in one cassette packaging | |||
Note | We can supply C-plane other thickness sapphire wafers. We also can supply R/M/A planes sapphire wafers. |
Features:
1.High Chemical Stability: Sapphire substrates resist corrosion and degradation, ideal for harsh chemical environments;
2.Thermal Conductivity: They demonstrate excellent heat dissipation, enhancing performance in high-power electronic devices;
3.Optical Clarity: Sapphire substrates enable light transmission across a broad spectrum, suitable for optical components;
4.Mechanical Strength: With outstanding hardness, sapphire substrates withstand physical impact and stress during use;
5.Low Thermal Expansion: Their minimal expansion rate ensures dimensional stability under varying temperature conditions.
Jiaozuo Tretrust Materials Co., Ltd. is a leading company specializing in the supplying of high-quality Silicon wafers, Sapphire substrates wafers, and other related products. With over a decade of experience in the industry, we have established ourselves as a trusted and reliable partner.
Our extensive range of products is designed to meet the diverse needs of our customers in various sectors, including the semiconductor industry, research and development, and more. We take pride in offering top-notch materials that are manufactured using state-of-the-art technology and adhere to stringent quality control measures.
Our success is built on strong partnerships and collaborations with companies and universities worldwide.We look forward to providing you with superior products and services, and to mutually develop together.
