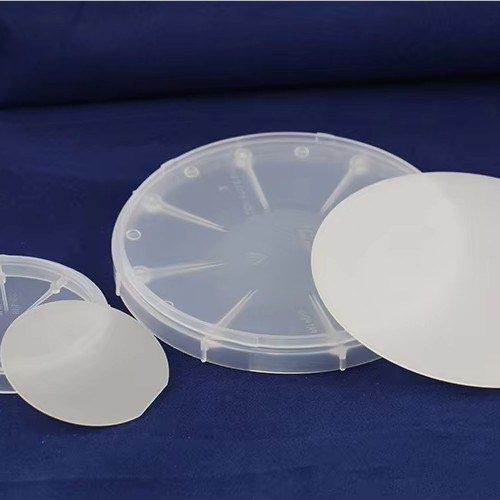

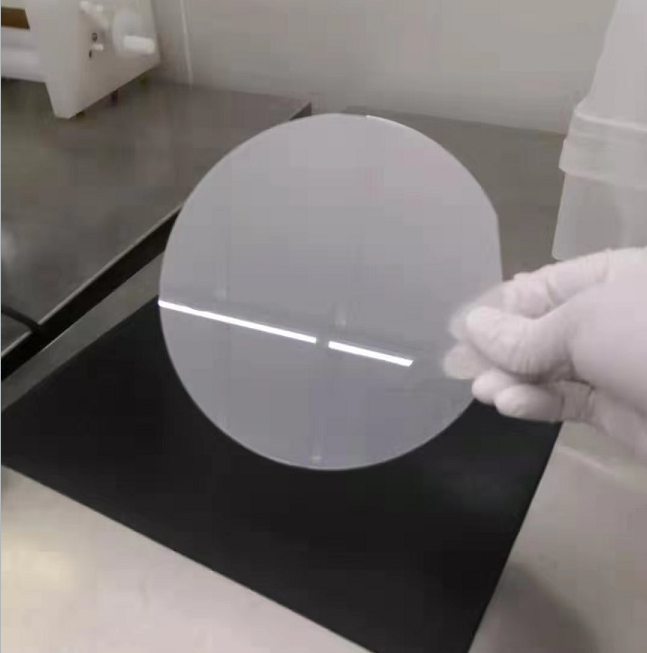

Patterned Sapphire Substrates (PSS) are specialized sapphire materials with micro-patterns designed to enhance the growth of semiconductor crystals, particularly in LED applications. These patterns improve light extraction efficiency, promote uniform crystal quality, and enable better device performance, making PSS a vital component in advancing optoelectronic technologies.
PRODUCT PROFILE | |
Crystal Materials | > 99,996%, High Purity, Monocrystalline, Al2O3 |
Orientation | C-plane(0001) off M-plane(1-100) 0.2° ± 0.1° |
Diameter | 50.8 mm ± 0.1 mm |
Thickness | 430 um ± 10 um |
Primary flat Orientation | A-plane [11-20] ± 0.2° |
Primary flat length | 15.0 mm ± 0.5 mm |
Front Surface | Epi-polished, Ra ≤ 0.3 nm (by AFM) |
Back Surface | Fine-ground, Ra =0.8 um - 1.2 um |
TTV | ≤ 5 um |
BOW | - 10 ~ 0 um |
Warp | ≤ 10 um |

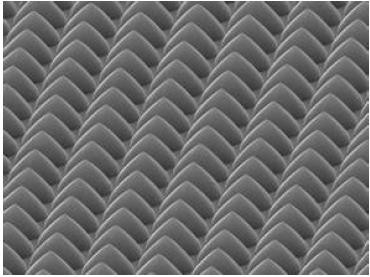

PSS properties | Like-Cone type |
Pattern Specifications | Height:1.7±0.1um Bottom Diameter: 2.65±0.1um Space: 0.35±0.1um Pitch: 3±0.1um |

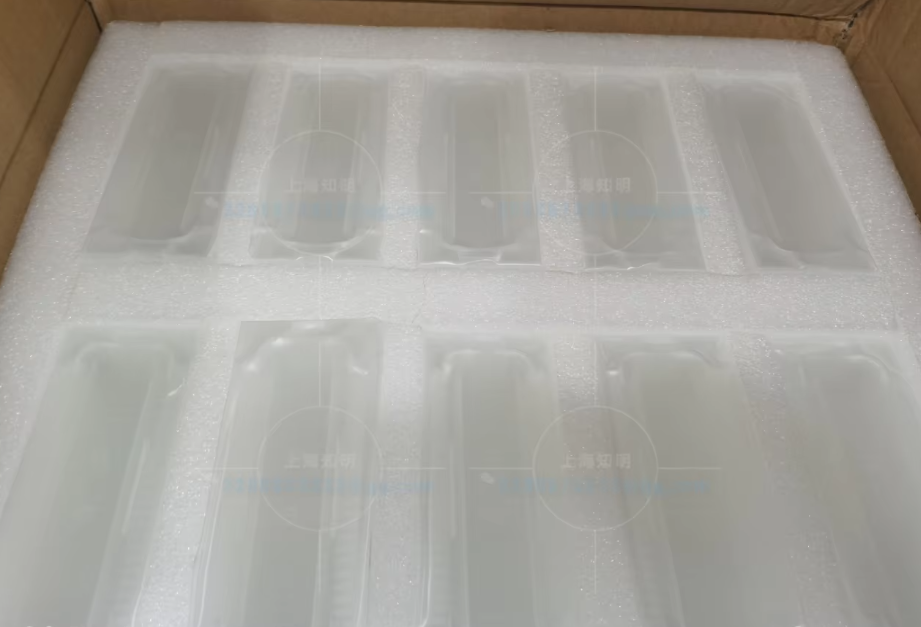

Cleaning / Packaging | Class 100 clean room cleaning and vacuum packaging derived nitrogen, 25 pieces in one cassette packaging |
Features:
1. Enhanced Light Extraction: Patterned features increase photonic interactions, improving light output efficiency in LEDs;
2. Improved Crystal Quality: Patterns facilitate better alignment of crystal growth, resulting in fewer defects in semiconductors;
3. Tailored Surface Morphology: Customizable surface structures enable optimization for specific applications and performance requirements;
4. Thermal Management: Patterns promote efficient heat dissipation, aiding in device stability and longevity;
5. Cost-Effective Production: PSS reduces the need for additional post-processing, streamlining manufacturing and lowering costs.
